Catalog entry / 056
Pressure regulators / WY-X compact gas pressure regulators

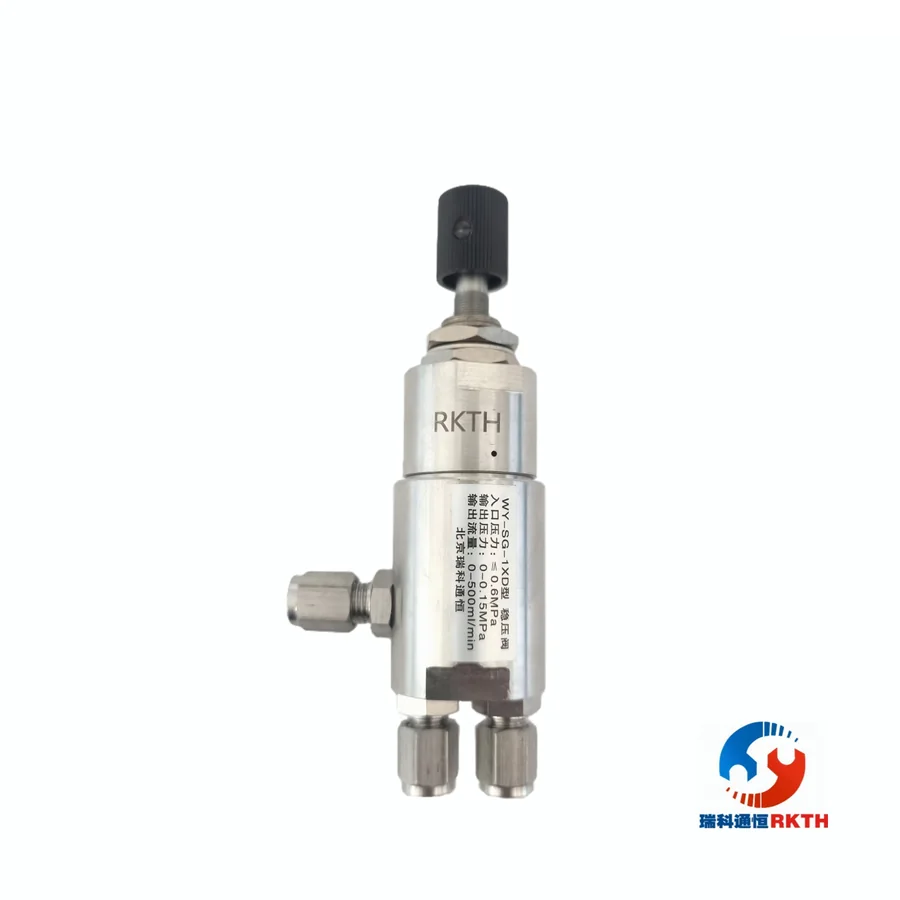

Compact stainless-steel low-pressure regulator
Model / Configuration
WY-SG-1XD
Portable gas analyzers and high-cleanliness gas systems.
At a glance
- 0.6 MPa
- 0.4 MPa
- 5000 mL/min
- 0.2%
- 0.1%
- 29 mm
- 110–120 mm
- 2/3 mm
| Main specifications | Maximum inlet 0.6 MPa; maximum outlet 0.4 MPa; maximum flow 5000 mL/min; regulation accuracy better than 0.2%, high-accuracy version better than 0.1%; approximately 29 mm diameter and 110–120 mm overall length. |
|---|---|
| Connections, materials & options | M8×1; 1.6, 2, or 3 mm and 1/16 or 1/8 in connections. Push-in, quick-connect, filtered, extended, stainless-steel, and dual-outlet versions available. |
| Typical duties | Portable gas analyzers and high-cleanliness gas systems. |
| Product note | Confirm the exact model suffix, materials, connections, and acceptance limits before quotation. |
| Catalog category | Pressure regulators |
| Product series | WY-X compact gas pressure regulators |
| Product group | Pressure & flow conditioning |
