Catalog entry / 042
Pressure regulators / WY general pressure regulators

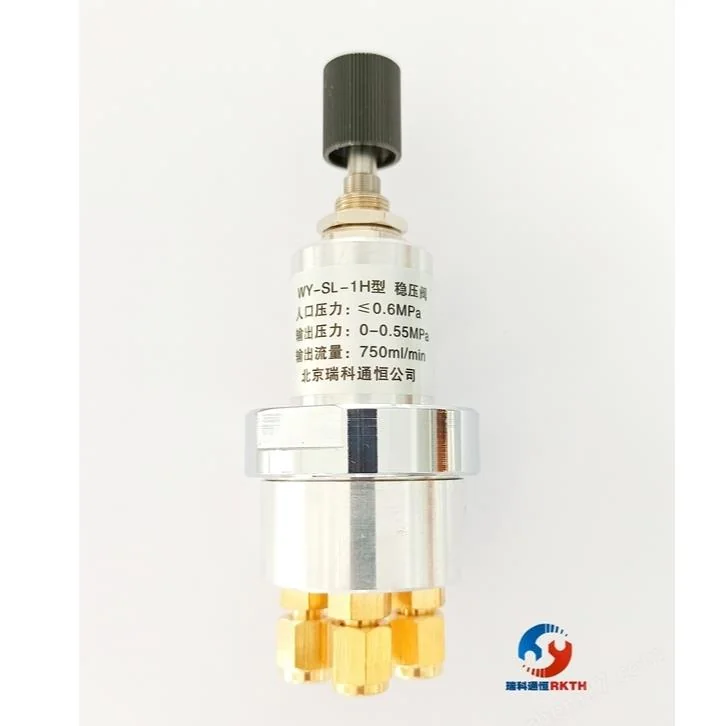

Vertical pressure regulator
Model / Configuration
WY-SL-1
Gas pressure regulation for general analytical instruments and laboratories.
At a glance
- 0.60 MPa
- 0.55 MPa
- 0.2%
- 0.1%
- 200℃
- 5000 mL/min
- 12 L/min
- 200 L/min
| Main specifications | Maximum inlet 0.60 MPa; maximum outlet 0.55 MPa; regulation accuracy better than 0.2%, or better than 0.1% for the high-accuracy version; ambient or 200°C version; model-dependent maximum flow of 5000 mL/min, 12 L/min, or 200 L/min; standard vertical body. |
|---|---|
| Connections, materials & options | Connections: 1.6, 2, 3, or 6 mm; 1/16, 1/8, or 1/4 in. Stainless-steel or aluminum construction; one-in/one-out, one-in/two-out, or two-in/two-out layouts. |
| Typical duties | Gas pressure regulation for general analytical instruments and laboratories. |
| Product note | Confirm the exact model suffix, materials, connections, and acceptance limits before quotation. |
| Catalog category | Pressure regulators |
| Product series | WY general pressure regulators |
| Product group | Pressure & flow conditioning |
