Catalog entry / 060
Pressure regulators / WY regulator with electronic pressure sensing

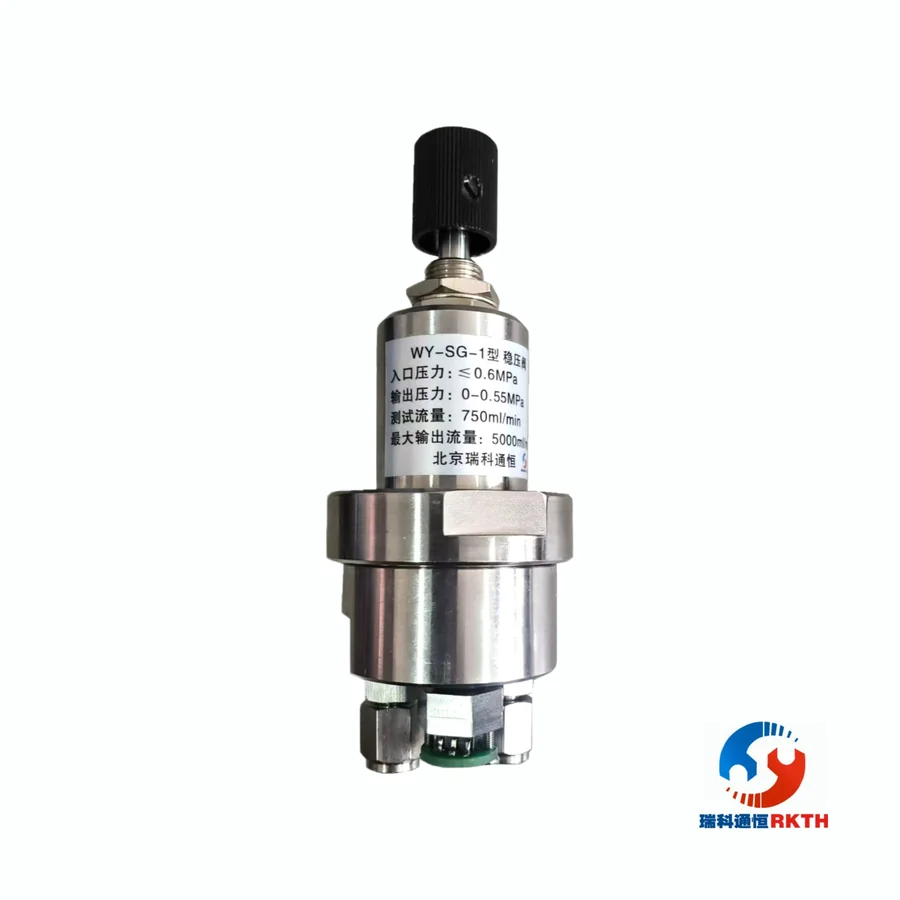

Integrated mechanical regulator with electronic pressure sensing
Model / Configuration
WY series with electronic sensing
Stable outlet pressure with real-time pressure acquisition for digital monitoring, interlocks, and remote control.
At a glance
- 0.2%
- 0.6 MPa
- 0.4 MPa
- 5000 mL/min
- 1%
- 1 MPa
- 3.3V
- 0.2–2.7V
| Main specifications | Mechanical regulation accuracy better than 0.2%; 0.6 MPa inlet; 0.4 MPa outlet; 5000 mL/min; sensor accuracy 1% span, 1 MPa range, 20 ms response; 3.3 V supply with 0.2–2.7 V output. |
|---|---|
| Connections, materials & options | M8×1; 1.6, 2, or 3 mm tubing; analog signal may connect to a PLC, embedded controller, or remote monitoring system. |
| Typical duties | Stable outlet pressure with real-time pressure acquisition for digital monitoring, interlocks, and remote control. |
| Product note | Confirm the exact model suffix, materials, connections, and acceptance limits before quotation. |
| Catalog category | Pressure regulators |
| Product series | WY regulator with electronic pressure sensing |
| Product group | Pressure & flow conditioning |
