Catalog entry / 050
Pressure regulators / WY-GY high-inlet-pressure regulators

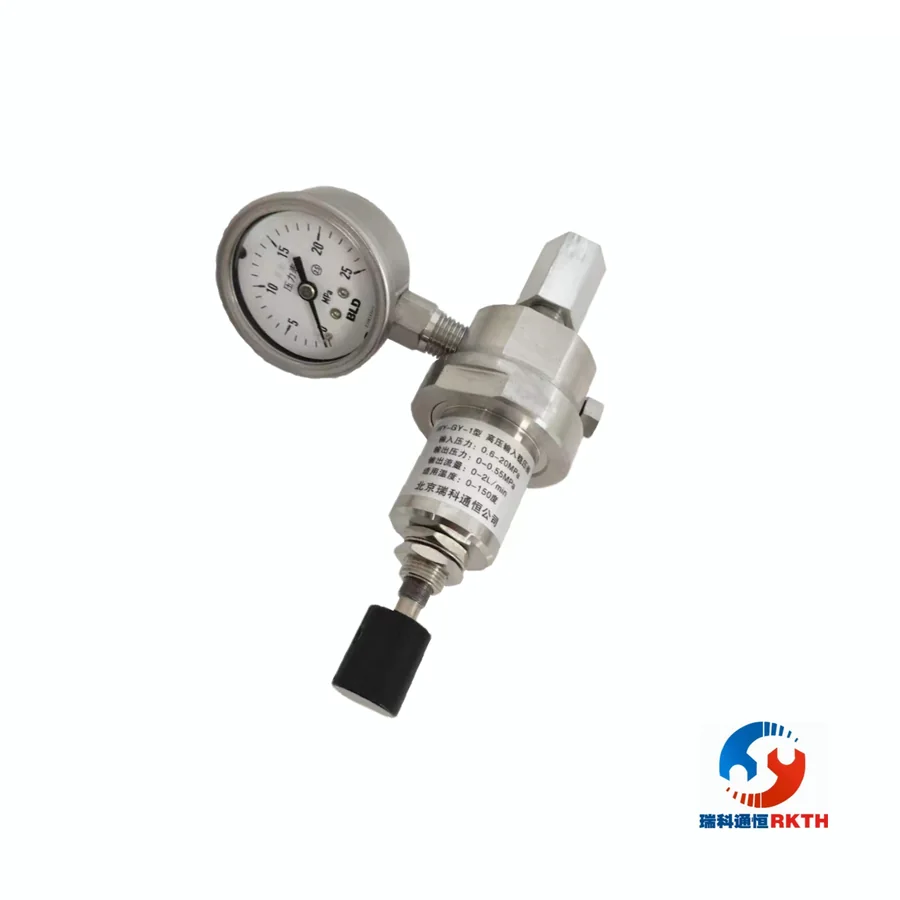

High-inlet-pressure regulator
Model / Configuration
WY-GY-1
Direct supply to chromatographs and precision analyzers after reducing pressure from a high-pressure cylinder or line.
At a glance
- 0.6–20 MPa
- 0–0.60 MPa
- 0–2 L/min
- 0.06%
- 20–200℃
- 3/6 mm
| Main specifications | Inlet 0.6–20 MPa; outlet 0–0.60 MPa; flow 0–2 L/min; regulation accuracy better than 0.06%; operating temperature -20 to 200°C. |
|---|---|
| Connections, materials & options | Cylinder inlet or custom inlet; 1.6, 2, 3, or 6 mm and 1/16, 1/8, or 1/4 in outlets; dual-gauge, gauge-free, high-pressure-gauge-only, or custom versions. |
| Typical duties | Direct supply to chromatographs and precision analyzers after reducing pressure from a high-pressure cylinder or line. |
| Product note | Confirm the exact model suffix, materials, connections, and acceptance limits before quotation. |
| Catalog category | Pressure regulators |
| Product series | WY-GY high-inlet-pressure regulators |
| Product group | Pressure & flow conditioning |
