Catalog entry / 053
Pressure regulators / WY-GY high-inlet-pressure regulators

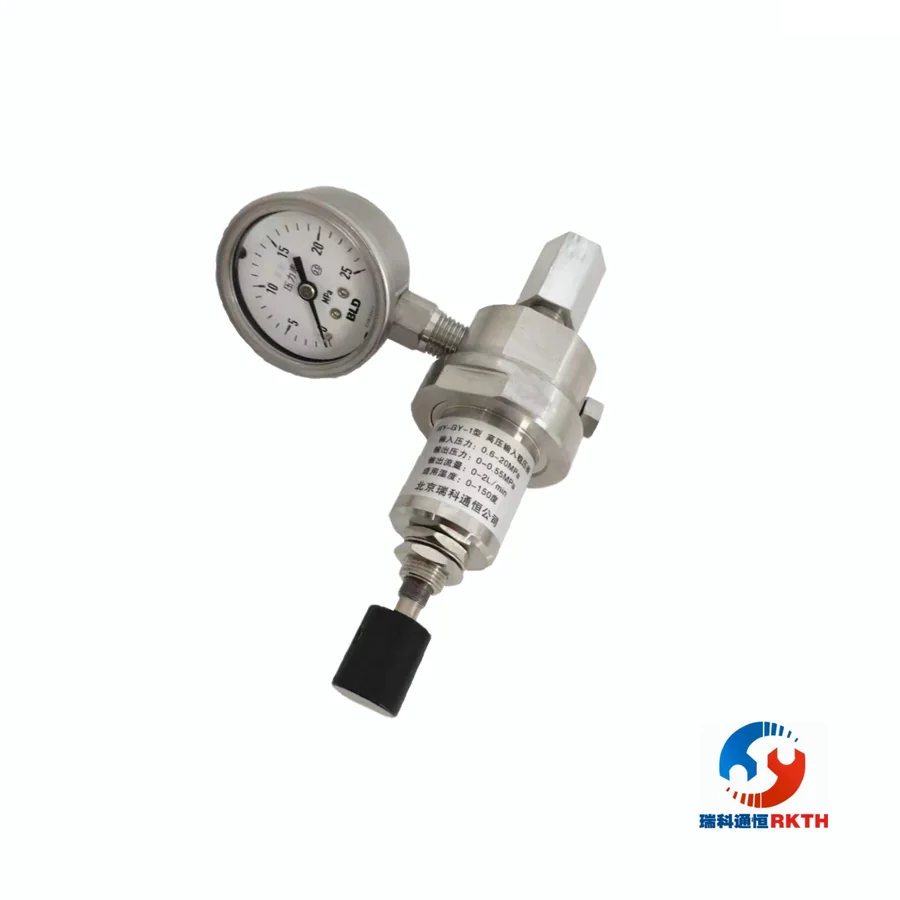

WY-GY-1 configuration
Model / Configuration
WY-GY-1 (cylinder-pressure version)
Portable analyzer front ends using an 8 L standard cylinder and a 1/4 in G inlet.
At a glance
- 0.6–20 MPa
- 0–0.60 MPa
- 0–2 L/min
- 2/3 mm
| Main specifications | Based on WY-GY-1: inlet 0.6–20 MPa, outlet 0–0.60 MPa, flow 0–2 L/min. |
|---|---|
| Connections, materials & options | Typical M20×1.5 inlet with 1.6, 2, or 3 mm outlet; exact configuration depends on version. |
| Typical duties | Portable analyzer front ends using an 8 L standard cylinder and a 1/4 in G inlet. |
| Product note | Confirm the exact model suffix, materials, connections, and acceptance limits before quotation. |
| Catalog category | Pressure regulators |
| Product series | WY-GY high-inlet-pressure regulators |
| Product group | Pressure & flow conditioning |
