Catalog entry / 100
Shutoff valves / Push-pull valves

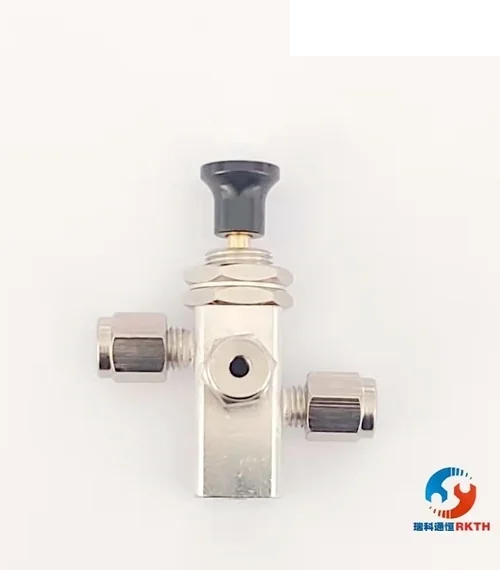

Three-way push-pull valve
Model / Configuration
QH-TL
Fast interlocked directional switching in laboratory lines, including two inlets to one common port.
At a glance
- 5–80℃
- ≤0.6 MPa
- 1 MPa
- 3 mm
| Main specifications | Operating temperature -5 to 80°C; working pressure ≤0.6 MPa, maximum 1 MPa; two-position, three-way function. |
|---|---|
| Connections, materials & options | 1/8 or 1/16 in connections; M8×1 with 2 or 3 mm interface; material configurable to gas service. |
| Typical duties | Fast interlocked directional switching in laboratory lines, including two inlets to one common port. |
| Product note | Confirm the exact model suffix, materials, connections, and acceptance limits before quotation. |
| Catalog category | Shutoff valves |
| Product series | Push-pull valves |
| Product group | Pressure & flow conditioning |
