Catalog entry / 098
Shutoff valves / QF ball shutoff valves

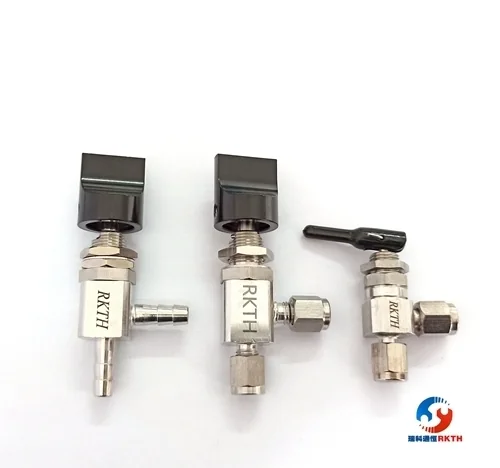

Horizontal / right-angle ball shutoff valve
Model / Configuration
QF series
Rapid shutoff in chromatographic gas or liquid paths, including corrosive-media and sulfide control.
At a glance
- 20 MPa
- 7 MPa
- 200℃
- 2/3 mm
| Main specifications | Maximum pressure 20 MPa; nitrogen leak test at 7 MPa; valve-body temperature capability 200°C; chromatography grade; fast opening and closing. |
|---|---|
| Connections, materials & options | 2-, 3-, or 4-port; 1.6, 2, or 3 mm and 1/16, 1/8, or 1/4 in connections; PEEK sealing; optional electric or pneumatic actuator. |
| Typical duties | Rapid shutoff in chromatographic gas or liquid paths, including corrosive-media and sulfide control. |
| Product note | Confirm the exact model suffix, materials, connections, and acceptance limits before quotation. |
| Catalog category | Shutoff valves |
| Product series | QF ball shutoff valves |
| Product group | Pressure & flow conditioning |
