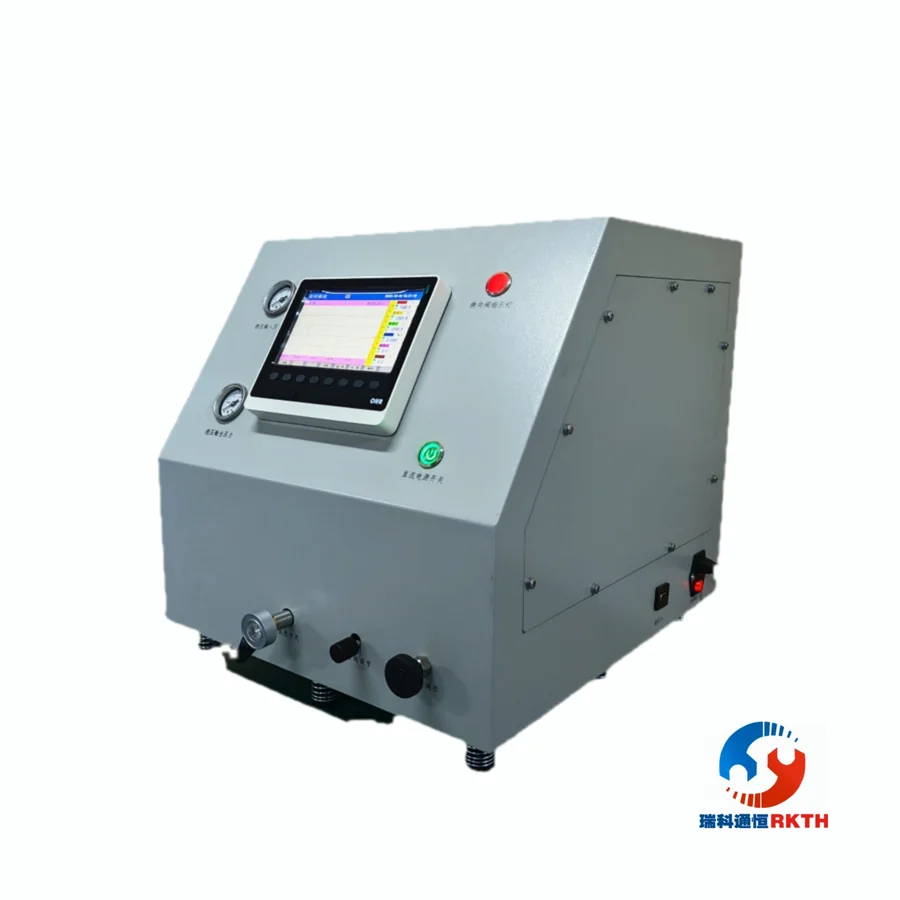

Three-position sequence control system with temperature and pressure sensing
Model / Configuration
KZQ-XT3-TP
Heated gas directional control, temperature and pressure protection, analyzer front-end protection, and process-line safety interlocks.
At a glance
- 0.01–5 MPa
- 450 mm
| Main specifications | Two PT100 temperature sensors; pressure sensing from 0.01 to 5 MPa; three-position stepper directional valve; RS485; linked temperature/pressure thresholds and alarms. |
|---|---|
| Connections, materials & options | High- and low-pressure displays, three-color status lamp, and host-computer or panel setup; enclosure approximately 500 × 470 × 450 mm as illustrated in the manual. |
| Typical duties | Heated gas directional control, temperature and pressure protection, analyzer front-end protection, and process-line safety interlocks. |
| Product note | Confirm the exact model suffix, materials, connections, and acceptance limits before quotation. |
| Catalog category | Controllers & systems |
| Product series | KZQ controllers |
| Product group | Control, thermal & integration |
