Catalog entry / 072
Controllers & systems / KZQ controllers

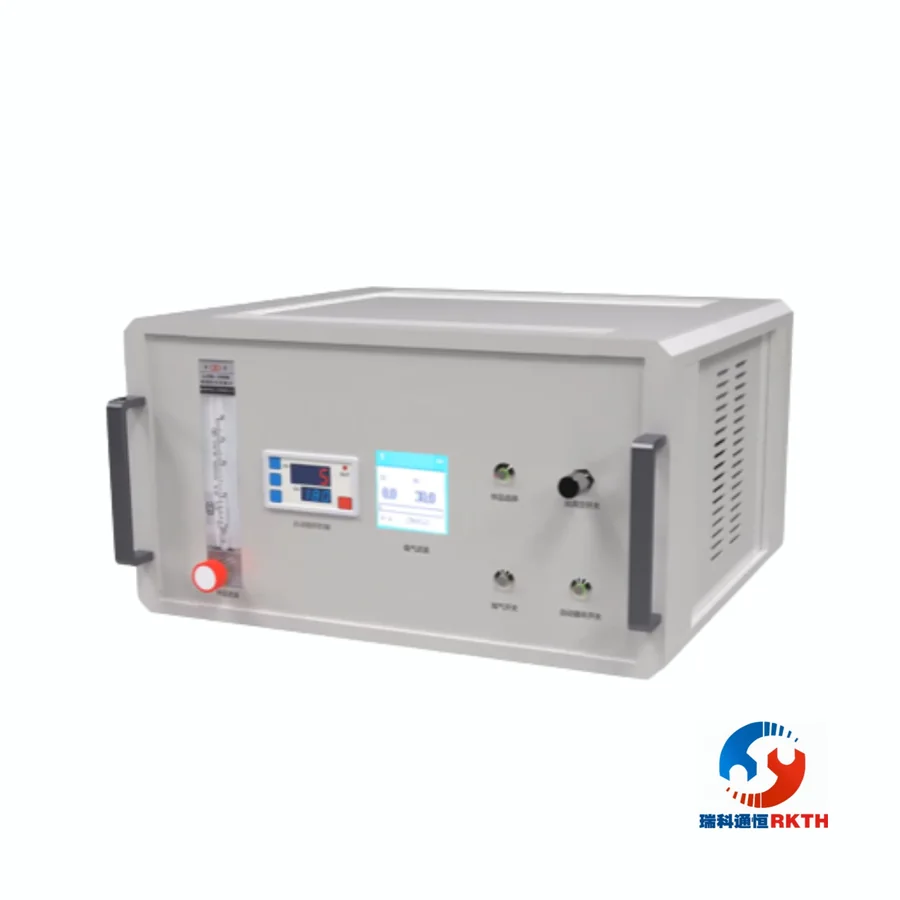

Trace-gas mixing and injection controller
Model / Configuration
KZQ-QH-MIX
Metered mixing of two samples, in-situ reactions, vacuum retention, and trace-gas research.
At a glance
- 0.5 mL
- 0.09 MPa
- 30–50 mL/min
- 100 mL/min
| Main specifications | 0.5 mL sample loop; 2 min injection; 5 s valve switching; vacuum to -0.09 MPa; 30–50 mL/min, maximum 100 mL/min; automatic cycling supported. |
|---|---|
| Connections, materials & options | Dual-sample switching, 6-port fixed-volume injection, carrier-gas control, and back-pressure-valve vacuum retention; suitable for approximately 1 ppm sample gas. |
| Typical duties | Metered mixing of two samples, in-situ reactions, vacuum retention, and trace-gas research. |
| Product note | Confirm the exact model suffix, materials, connections, and acceptance limits before quotation. |
| Catalog category | Controllers & systems |
| Product series | KZQ controllers |
| Product group | Control, thermal & integration |
