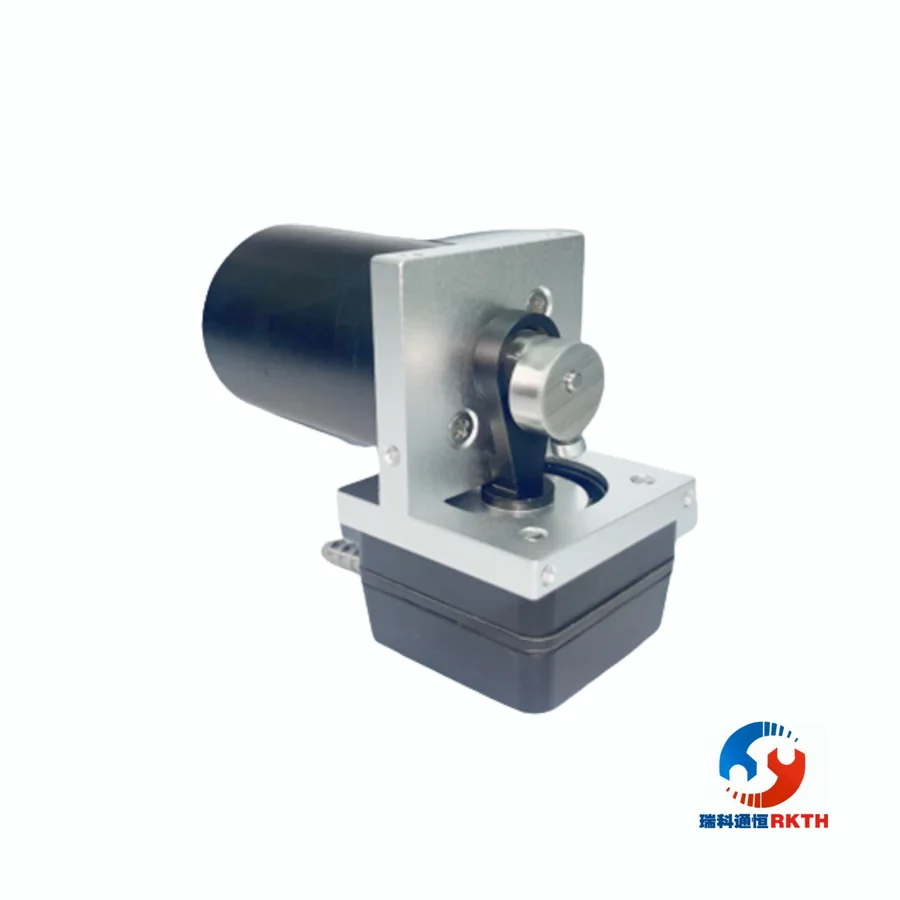

Piston pump
Model / Configuration
HSB-1205
Metered gas transfer for online analysis, environmental sampling, laboratories, and industrial process control.
At a glance
- 4000 rpm
- 2800 rpm
- 8 L/min
- 12VDC
- 3.6W
- 0.09 MPa
- 0.07 MPa
- 5–60℃
| Main specifications | Maximum 4000 rpm, average 2800 rpm; maximum 8 L/min; 12 VDC, 3.6 W; +0.09 MPa pressure and -0.07 MPa vacuum; -5 to 60°C; ≤±0.1% RSD. |
|---|---|
| Connections, materials & options | Six-wire brushless motor; 0–5 V speed control; speed feedback; four M3 mounting holes. |
| Typical duties | Metered gas transfer for online analysis, environmental sampling, laboratories, and industrial process control. |
| Product note | Confirm the exact model suffix, materials, connections, and acceptance limits before quotation. |
| Catalog category | Other valves & pumps |
| Product series | Gas-transfer pumps |
| Product group | Pressure & flow conditioning |
