Catalog entry / 109
Other valves & pumps / Back-pressure valves

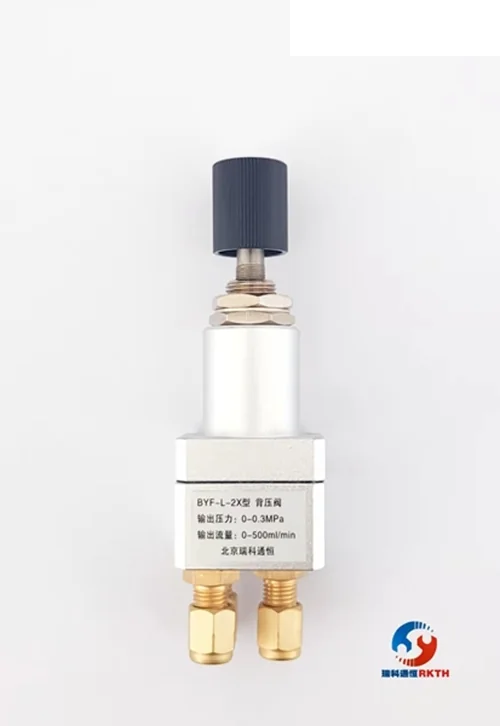

Low-flow back-pressure valve
Model / Configuration
BYF-L-2X
Upstream-pressure stabilization for HPLC, precision laboratory equipment, and industrial regulation.
At a glance
- 0–0.3 MPa
- 0–500 mL/min
- 2%FS
- 100 kPa
- 1 kPa
- 107 mm
| Main specifications | Outlet pressure 0–0.3 MPa; output flow 0–500 mL/min; accuracy better than 2% FS; approximately 1 kPa actual pressure change for a 100 kPa inlet change. |
|---|---|
| Connections, materials & options | M12×1; approximately 107 mm overall; incorporates check-shutoff function. |
| Typical duties | Upstream-pressure stabilization for HPLC, precision laboratory equipment, and industrial regulation. |
| Product note | Confirm the exact model suffix, materials, connections, and acceptance limits before quotation. |
| Catalog category | Other valves & pumps |
| Product series | Back-pressure valves |
| Product group | Pressure & flow conditioning |
