Catalog entry / 029
Stream selector valves / XT electric stream selector valves

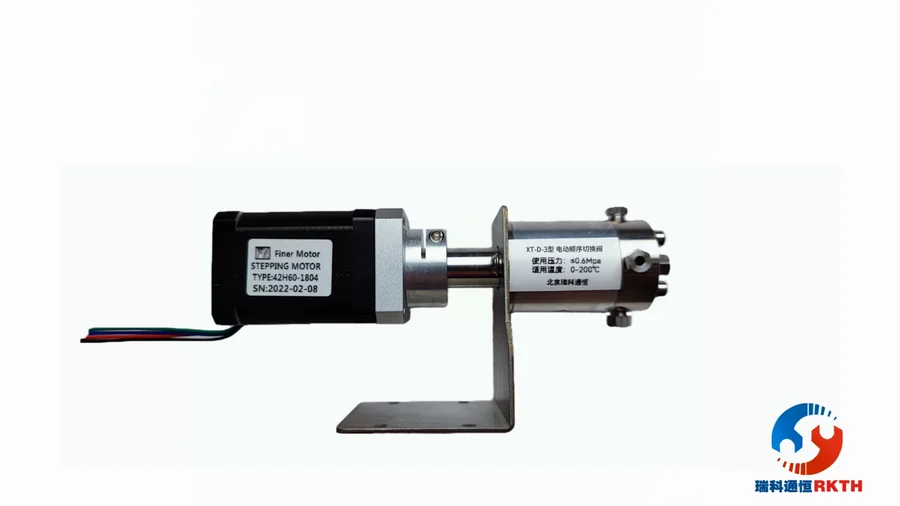

Electric sequential 3-port selector valve
Model / Configuration
XT-D-3
Sequential selection of three sample streams.
At a glance
- 0–0.60 MPa
- 6 MPa
- 1000 psi
- 24VDC
- 30W
- 200℃
- 330℃
- 2/3 mm
| Main specifications | One common inlet/outlet with 3–42 selectable streams; 0–0.60 MPa, custom high-pressure version to 6 MPa / 1000 psi; 24 VDC, 30 W stepper motor; service life >1,000,000 cycles; valve body 200°C or extended-stem version 330°C; chromatography-grade cleanliness. |
|---|---|
| Connections, materials & options | RS485, integrated controller, standalone controller, or PLC control. Connections: 1.6, 2, or 3 mm; 1/16 or 1/8 in. Materials: 316L, PEEK, or Hastelloy. Independent or interconnected branches; optional purge and silanization. |
| Typical duties | Sequential selection of three sample streams. |
| Product note | Confirm the exact model suffix, materials, connections, and acceptance limits before quotation. |
| Catalog category | Stream selector valves |
| Product series | XT electric stream selector valves |
| Product group | Stream selection |
