Catalog entry / 062
Flow stabilizers / WL flow stabilizers

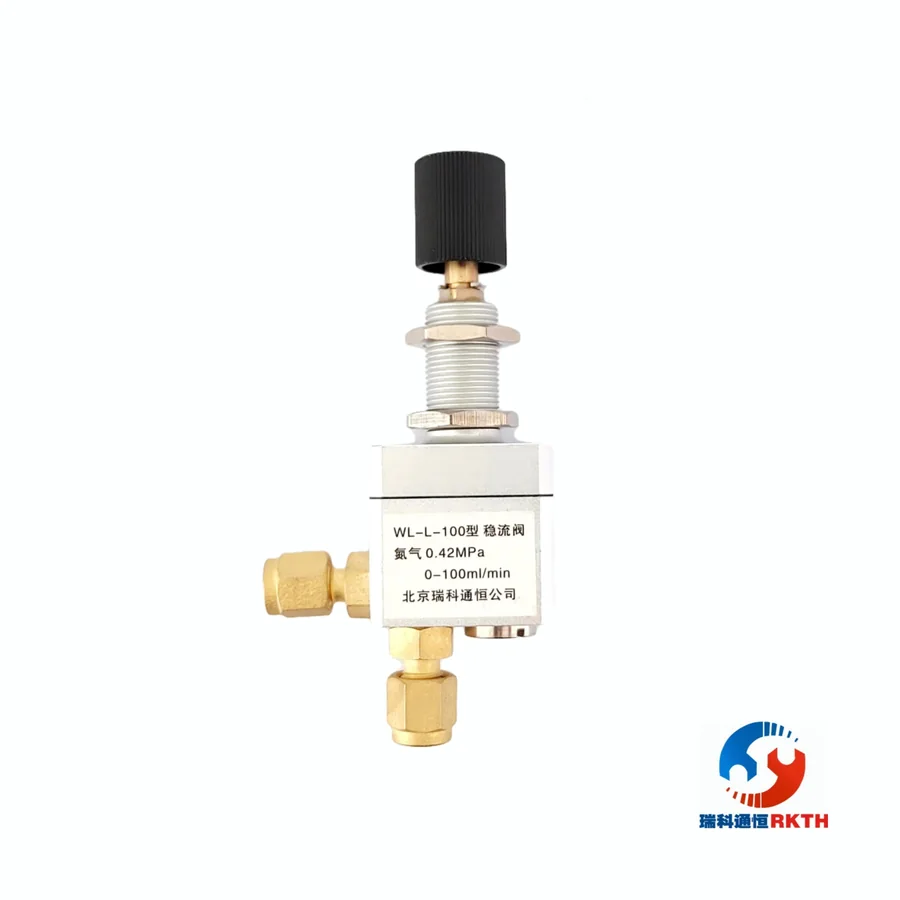

Standard flow stabilizing valve
Model / Configuration
WL-L-100
Single-stream sampling and flow stabilization for carrier or calibration gas.
At a glance
- ≤0.6 MPa
- 5–50℃
- ±0.3%
- 0.42 MPa
- ≤1%
- 0–100 mL/min
- 4/6 mm
- 170℃
| Main specifications | Maximum inlet ≤0.6 MPa; ambient 5–50°C; control accuracy ±0.3%; pressure fluctuation ≤1% at 0.42 MPa inlet; custom flow available; range 0–100 mL/min. |
|---|---|
| Connections, materials & options | Connections: 1.6, 2, 3, 4, or 6 mm; 1/16, 1/8, or 1/4 in. Ambient or 170°C version; general, sulfide-resistant, ozone-resistant, or ammonia-resistant trim; one-in/one-out or one-in/two-out. |
| Typical duties | Single-stream sampling and flow stabilization for carrier or calibration gas. |
| Product note | Confirm the exact model suffix, materials, connections, and acceptance limits before quotation. |
| Catalog category | Flow stabilizers |
| Product series | WL flow stabilizers |
| Product group | Pressure & flow conditioning |
