Catalog entry / 025
Switching valves / QH-Q right-angle pneumatic switching valves

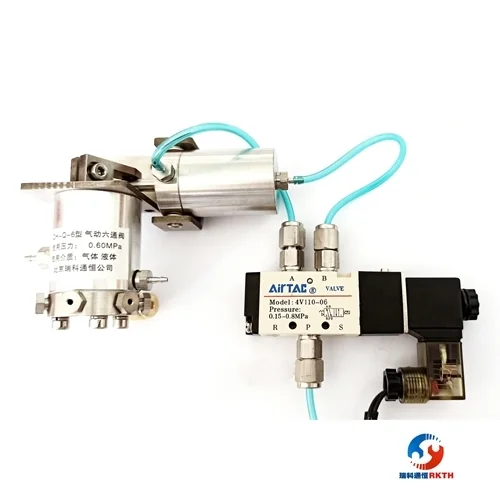

Right-angle pneumatic 6-port valve
Model / Configuration
QH-Q-6
Automated injection for space-constrained, explosion-protected, or high-cycle systems.
At a glance
- 0–0.60 MPa
- 0.15–0.60 MPa
- 0–200℃
- 330℃
- 0–70℃
- 27 mm
- 2/3 mm
- 316L
| Main specifications | Valve-body pressure 0–0.60 MPa; actuator pressure 0.15–0.60 MPa; service life >1,000,000 cycles; valve body 0–200°C, custom version to 330°C; actuator 0–70°C; chromatography-grade cleanliness. |
|---|---|
| Connections, materials & options | Right-angle body; 27 mm mounting-hole pitch; M5, M6×0.75, or M7×0.75 threads; 1.6, 2, or 3 mm and 1/16 or 1/8 in connections; 316L, PEEK, or Hastelloy. |
| Typical duties | Automated injection for space-constrained, explosion-protected, or high-cycle systems. |
| Product note | Confirm the exact model suffix, materials, connections, and acceptance limits before quotation. |
| Catalog category | Switching valves |
| Product series | QH-Q right-angle pneumatic switching valves |
| Product group | Switching & injection |
